SMARC®モジュール

SMARC® Module with RZ/G2E Processor

αSMARC-RZ/G2E

SMARC module

- A53×2
  1.2GHz
- DDR3L
  1GB
- eMMC
  8GB
SMARC2.1

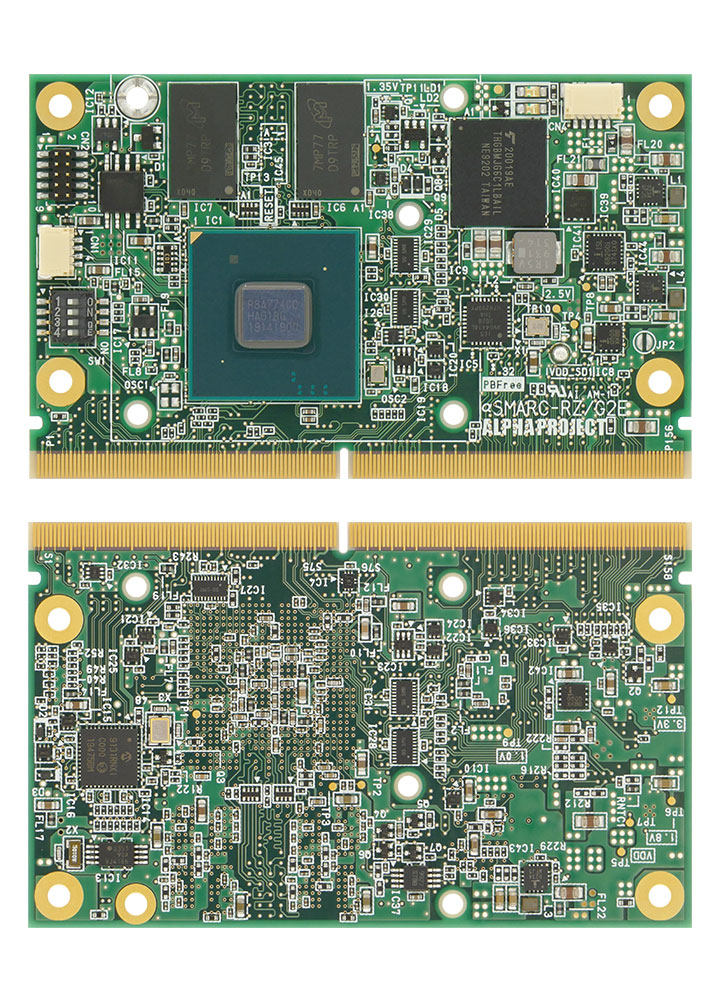

The αSMARC-RZ/G2E is a SoM (System on Module) for mass production that is equipped with the “RZ/G2E” MPU manufactured by Renesas Electronics and conforms to the SMARC 2.1 standard.

The αSMARC-RZ/G2E has high-speed interfaces such as USB3.0, PCI Express, and Gigabit Ethernet, and many functions such as LCD and AUDIO, making it ideal for applications such as industrial HMI.

Features

Arm Cortex-A53 Dual core RZ/G2E 1.2GHz
Supports Full HD compatible video encoding/decoding
Equipped with eMMC and DDR3L memory
Edge Connector Features (USB3.0/PCIe/Gigabit Ethernet/LCD/AUDIO/CAN)
SMARC 2.1 compatible (Board size 82×50㎜)
CarrierBoard and Linux BSP available

Specification

CPU	R8A774C0HA01BG (552pin FCBGA) Arm® Cortex®-A53 Dual core 1.2GHz
ROM	eMMC 8GByte SPI FLASH 4MByte EEPROM 2KByte
RAM	DDR3L-1856（928MHz） 1GByte / 32bit data-bus
SMARC I/F	Gigabit Ethernet ×1 USB3.0 SuperSpeed OTG ×1 USB2.0 High-Speed Host/Function ×2 PCI Express Rev2.0(1Lane) ×1 SD-CARD ×1 LCD(LVDS) ×2 CAMERA(MIPI® CSI-2) ×1 UART ×3 CAN(FD Support) ×2 AUDIO I2S ×1 SPI ×1 I2C ×3 GPIO ×14
RTC	Maximum daily difference ± 2 seconds. Backup with external power supply.
LED	Monitor LED ×1 Power LED ×1
UART	UART(TTL) ×1
Power supply	DC5V ±5%
Current consumption	Max 10W
Usage environment	-20～60℃（No condensation）
Size	82×50mm（Excludes connectors and protrusions）
Circuit Board	FR-4 (UL94-V0)
Accessories	Heat sink(Dedicated product installed)
Pre-installed OS	CIP™ Linux 4.19（VLP 1.0.6）

Download

Manual	Version	Date
αSMARC-RZ/G2E Hardware Manual(English)	2.0	2023/10/02

※All other company names and product names in this website are trademarks or registered trademarks of the respective companies.
※Please note that specifications are subject to change without notice.
