Hitachi SuperH™ series Alpha Board
AP-SH2F-1A ¥ 25,000
(Tax not included.) |
AP-SH2F-1A is board computer with Hitachi SH-2
Processor SH7051F.
Wide range of usage purpose such as various prototype manufacture or application
to the small lot product is possible, because all necessary signals for
external expansion are extracted to the connector for external connection. |

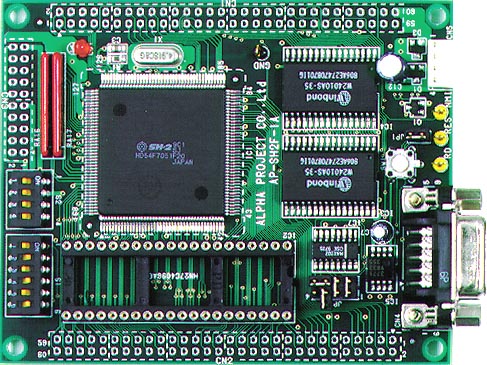

Click
to enlarge. |
 |
 |
Sample programs such as start-up and timer
interruption, etc. are included in this package. |
|
FlashWriter is applicable for
development tools. |
Features
 |
Operation frequency 19.6608 MHz |
| |
3 channel serial port |
| |
Parallel port |
| |
10 channel, 16 bit integrated timer unit |
| |
16 channel, 10 bit A/D |
| |
External interruption: 9 |
|
256 Kbyte internal FROM and 512 Kbyte external ROM
can be packaged. |
|
System expansion is easy because all CPU BUS output
is to the connector. |
|
Responding to the 16 bit BUS. |
|
Detachable ROM and RAM on board. |
|
Extra high speed SRAM (16 bit width NOWAIT) |
|
With RS-232 driver |
|
F-ZTAT writing software for SH7051 included (FlashWriter
for SH7051F) |
|
Specification
| CPU |
SH7051F |
| ROM |
ROM : Internal flash ROM 256 Kbyte (32 bit width)
EPROM (not packaged) 512 Kbyte (16 bit width) |
| RAM |
SRAM 256 Kbyte (16 bit width) |
| Clock |
4.9152 MHz (Maximum 19.6608 MHz) |
| Power source voltage |
DC5V ± 5% |
| Electrical consumption |
150mA / MAX |
| Substrate size |
100 x 80 (mm) 4 layer substrate |
| Accessories |
Operation manual, circuit drawing, power cable, sample
program and flash writing software |
|
Note : The connector between ROM and substrate is not attached.
No clean flux is used to manufacture electronic substrates.
|
Block
diagram
